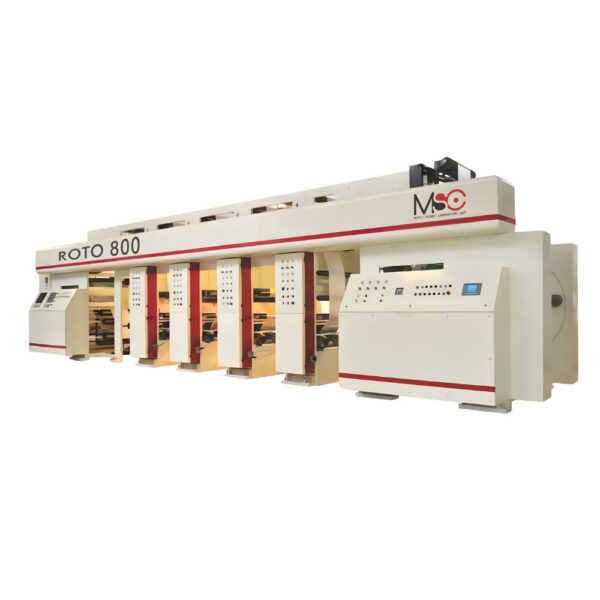

STANDARD ROTOGRAVURE
ROTO series is designed for medium segments. Area where quality requirement
is at par and quantity of job is reasonable. This machine suits with all
fields of packaging. Higher output and low energy consumption is a key for
the success for the users; concepts are designed here for better performance
and operator friendly functions.
Quick job change over
Easy operations
Consistent quality reproduction
Shorter web path
Low energy consumption
User friendly touch screen operations
Quick cleaning system for doctor blade house
Motorized print register system
Automatic tension control system at unwinder and rewinder
Air shaft on unwinder and rewinder
Perfectly stable construction of heavy duty frame assemblies assure vibration free running
High efficiency drying system exclusively developed for high speed printing
Extended drying chamber for faster printing speed
Dynamically balanced low friction free rollers
Inline lamination system
Video scanning system
Auto pre register and control system
Ink temperature control system
Crossed turn bars system for front and back print
Ink circulation system

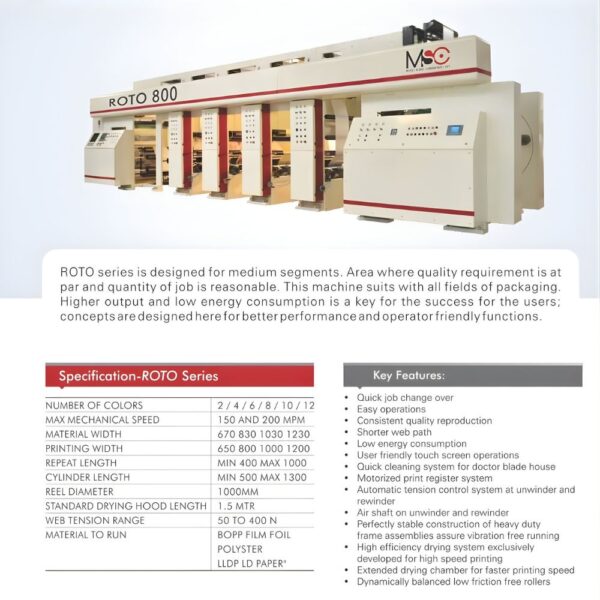

Specification – ROTO Series
| Number of Colors | 2 / 4 / 6 / 8 / 10 / 12 |
|---|---|
| Max Mechanical Speed | 150 & 200 MPM |
| Material Width | 670 / 830 / 1030 / 1230 mm |
| Printing Width | 650 / 800 / 1000 / 1200 mm |
| Repeat Length | Min 400 – Max 1000 mm |
| Cylinder Length | Min 500 – Max 1300 mm |
| Reel Diameter | 1000 mm |
| Standard Drying Hood Length | 1.5 Mtr |
| Web Tension Range | 50 to 400 N |
| Material to Run | BOPP Film, Foil, Polyester, LLD, LD, Paper |
