CANTILEVER SLITTING

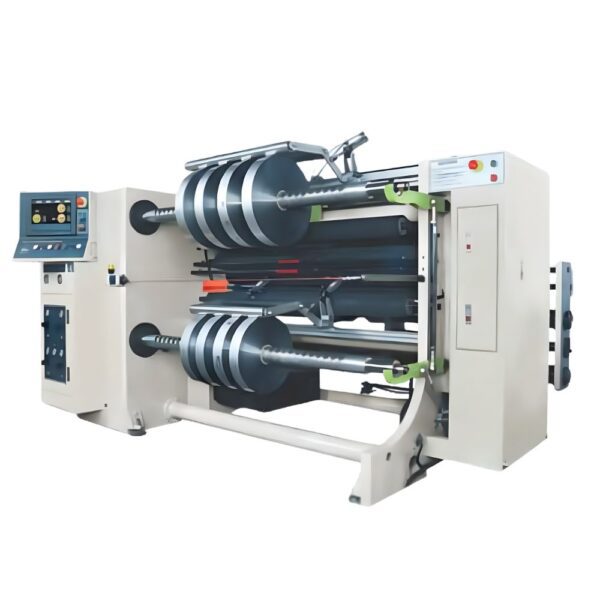

The MSC duplex shaft Slitter Rewinder is a Cantilever type which incorporates a range of superior design feature that ensure the highest possible quality for the final split roll Independent rewind tension control through non contact ultrasonic techniques for diameter measurement and unique core lock for differential slip at running speed.
The design incorporate the Three motor control system & unwind pneumatic brake with load cell feed. back. Digital Edge/line guiding to achieve high speed correction.
Calculative designed, strong & heavy duty mild steel structure
4 drive system for synchronized unwinder, main drive & both rewinders
Touch screen panel for easy & smart operating
Minimum wastage & minimum dependency on labour due to increased automation and easy operating system
Cork coated, dynamically balanced, specially designed low friction idler rollers made of aluminium alloy,
mounted on low friction bearings
mounted on low friction bearings
Digital web line guiding system
High performance differential winding shafts
System consists of AC digital drive, load cell for feedback, ultrasonic sensor, etc.
Each rewinder equipped with pneumatically loaded nip assembly with contact pressure control
Shaftless system for unwinder (optional)
Laser light system at rewinder for easy loading of paper core

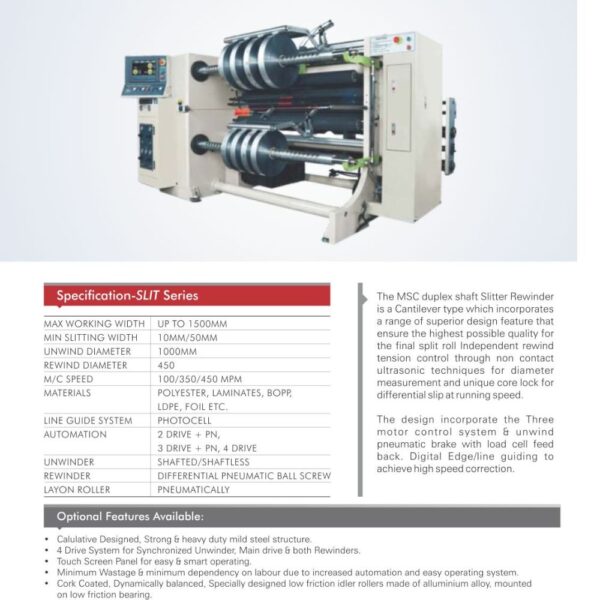

Specification – SLIT Series
| Max Working Width | Up to 1500 mm |
|---|---|
| Min Slitting Width | 10 mm / 50 mm |
| Unwind Diameter | 1000 mm |
| Rewind Diameter | 450 mm |
| Machine Speed | 100 / 350 / 450 MPM |
| Materials | Polyester, Laminates, BOPP, LDPE, Foil etc. |
| Line Guide System | Photocell |
| Automation | 2 Drive PN / 3 Drive PN / 4 Drive |
| Unwinder | Shafted / Shaftless |
| Rewinder | Differential pneumatic ball screw |
| Layon Roller | Pneumatically operated |
